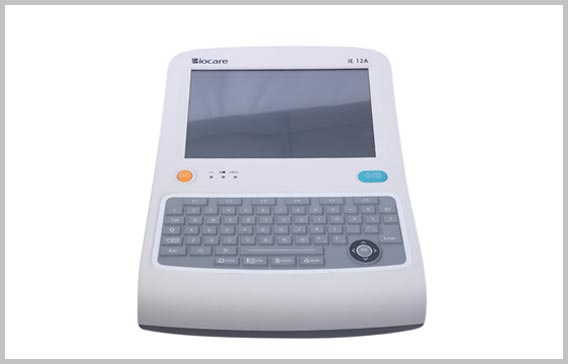

The foldable monitor(0～80 degree) with 5.7 inches LCD, contrast is adjustable;
R-R interval analysis, detailed and brief analysis reports satisfy different requirement;
Multi-language options;
Real-time waveform freezing;
Economy mode available help to reduce printing cost;
Long lasting Li-ion battery up to 2 hours continues working;
LAN port for real-time data transmission;
Easy upgrading keeps you updated;
Delightful operating experience with durable silicon button, unique shuttle design;
Optional SD card, unlimited data storage.
1) Display: 5.7inches LCD
2)Acquisition Mode: Simultaneous 12-Lead Acquisition
3) Input Impedance: >50Ω
4) Patient Leak Current: <10μA
5) Time Constant: ≥3.2s
6) Frequency response: 0.05≈150Hz
7) Noise Level: <15μVp-p
8) Sensitivity: 2.5, 5, 10,20mm/mV
9) Recording Paper: 210mm x 140mm x 140p fan-fold paper
10) Paper Speed: 5,6.25,10,12.5,25,50mm/s
PC connectivity is optinal
The foldable monitor(0～80 degree) with 5.7 inches LCD, contrast is adjustable;
• R-R interval analysis, detailed and brief analysis reports satisfy different requirement;
• Multi-language options;
• Real-time waveform freezing;
• Economy mode available help to reduce printing cost;
• Long lasting Li-ion battery up to 2 hours continues working;
• LAN port for real-time data transmission;
• Easy upgrading keeps you updated;
• Delightful operating experience with durable silicon button, unique shuttle design;
• Optional SD card, unlimited data storage.
