Features
– 3-part differentiation of WBC, 60 samples per hour throughput
– 2 counting channels, 20 parameters and 3 color histograms
– 2 counting mode: Whole blood, Pre-diluted

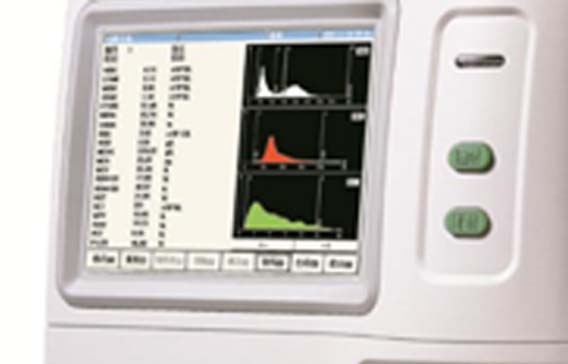

– 8.0” TFT color LCD with mouse operation
– Error alarm function
– External AC adapter avoids electronics noises, enhancing accuracy
– Up to 50,000 sample results(including histograms) can be stored
– Multi-language software available on request
Technical Specification
Principle:
Electrical resistance for counting WBC, RBC and PLT
Parameters:
WBC,LYM#,MON#,GRA#,LYM%,MON%,GRA%,RBC,HGB,HCT,MCV,MCH,MCHC,RDW-CV,RDW-SD,PLT,
MPV, PDW, PCT, P-LCR, and Histograms for WBC, RBC and PLT
Throughput:
60 samples per hour
Sample Volume:
Whole Blood: 9.8ul, Pre-diluted: 20ul
Aperture Diameter:
WBC: 80um, RBC: 50um
Alarms:
Error messages
Display:
8.0” TFT color LCD with mouse operation
Storage:
50,000 sample results including histograms
Printout:
Built-in thermal printer, various print-out formats, external printer optional
Input/Output:
RS-232, USB, LAN, keyboard and mouse interface
Operating Environment:
Temperature: 15-35°C, Humidity: 10%-80%
Power supply: AC100-240V, 50~60±1Hz
Dimension & Net-Weight:
468*325*395mm(L*W*H), 16.5Kg
